产品介绍

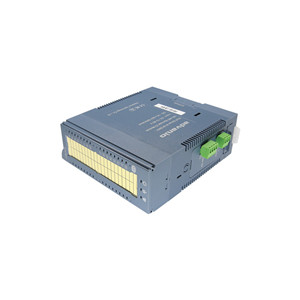

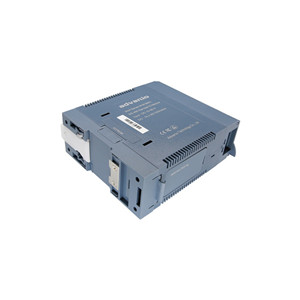

RS485接口16通道带隔离数字量输出模组
产品特性
16-Ch 数字量输入模块
RS485接口
输入电压: 3~3.5 VDC
隔离保护2500 VDC
| 产品规格 specification | |
| 功耗 Power Consumption | 4.8 W @ 24 VDC |
| 通道 Channels | 16 Channels |
| 看门狗 Watchdog Timer | System (1.6 Second Fixed) Communication (Programmable) |
| 电压输入范围 Power Input Range | 10~60V |
| 湿接点 Wet contact | Logic Level 0: 3V (Max.) Logic Level 1: 10 to 50V |
| 干接点 Dry contact | Logic Level 0: Open Logic Level 1: Close to GND |
| 输入阻抗 Input Impedance | 10㏀ |
| 过压保护 Over-Voltage Protection | 70 VDC |
| 频率输入范围 Frequency Input Range | 100Hz (16bit) |
| 正常输出电流 Normal Output Current | 500mA per Channel |
| 输出电压范围 Output Voltage Range | 3.5~30V |
| 输出类型 Output Type | NPN |
| 启动值配置 Startup Value Setting | Yes |
| 通信安全值配置 Communication Safety Value Setting | Yes |
| 接口 Connector | 2 Plug-In Terminal Block (#16~30 AWG) |
| 接口 Interface | RS-485 |
| 通信协议 Communication Protocol | Modbus RTU |
| 通信速度 Communication Speed | Serial: From 1200 to 115.2 kbps |
| 通信距离 Communication Distance | 1200m |
| 隔离保护 Isolation Protection | 2500 VDC |
| 环境 Environment | 操作温度 Operation Temp.: -25~70°C 存储温度 Storage Temp.: -30~75°C 操作湿度 Operation Humidity: 10% ~ 90% 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 尺寸 Dimension W×H×L | 47.2×121.1×120.1mm |
| 操作系统 OS | Windows7/10 |
16-Ch 数字量输入模块
RS485接口
输入电压: 3~3.5 VDC
隔离保护2500 VDC
| 功耗 Power Consumption | 1.6 W @ 24 VDC |
| 通道 Channels | 16 Channels |
| 看门狗 Watchdog Timer | System (1.6 Second Fixed) Communication (Programmable) |
| 输出电压范围 Output Voltage Range | 3.5~30V |
| 输出类型 Output Type | NPN |
| 正常输出电流 Normal Output Current | 500mA per Channel |
| 启动值配置 Startup Value Setting | Yes |
| 通信安全值配置 Communication Safety Value Setting | Yes |
| 接口 Connector | 1 Plug-In Terminal Block (#16~30 AWG) |
| 接口 Interface | RS-485 |
| 通信协议 Communication Protocol | Modbus RTU |
| 通信速度 Communication Speed | Serial: From 1200 to 115.2 kbps |
| 通信距离 Communication Distance | 1200m |
| 隔离保护 Isolation Protection | 2500 VDC |
| 环境 Environment | 操作温度 Operation Temp.: -25~70°C 存储温度 Storage Temp.: -30~75°C 操作湿度 Operation Humidity: 10% ~ 90% 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 尺寸 Dimension W×H×L | 47.2×121.1×120.1mm |
| 操作系统 OS | Windows7/10 |
